Home Newland Scanners FM Fixed Mount Series

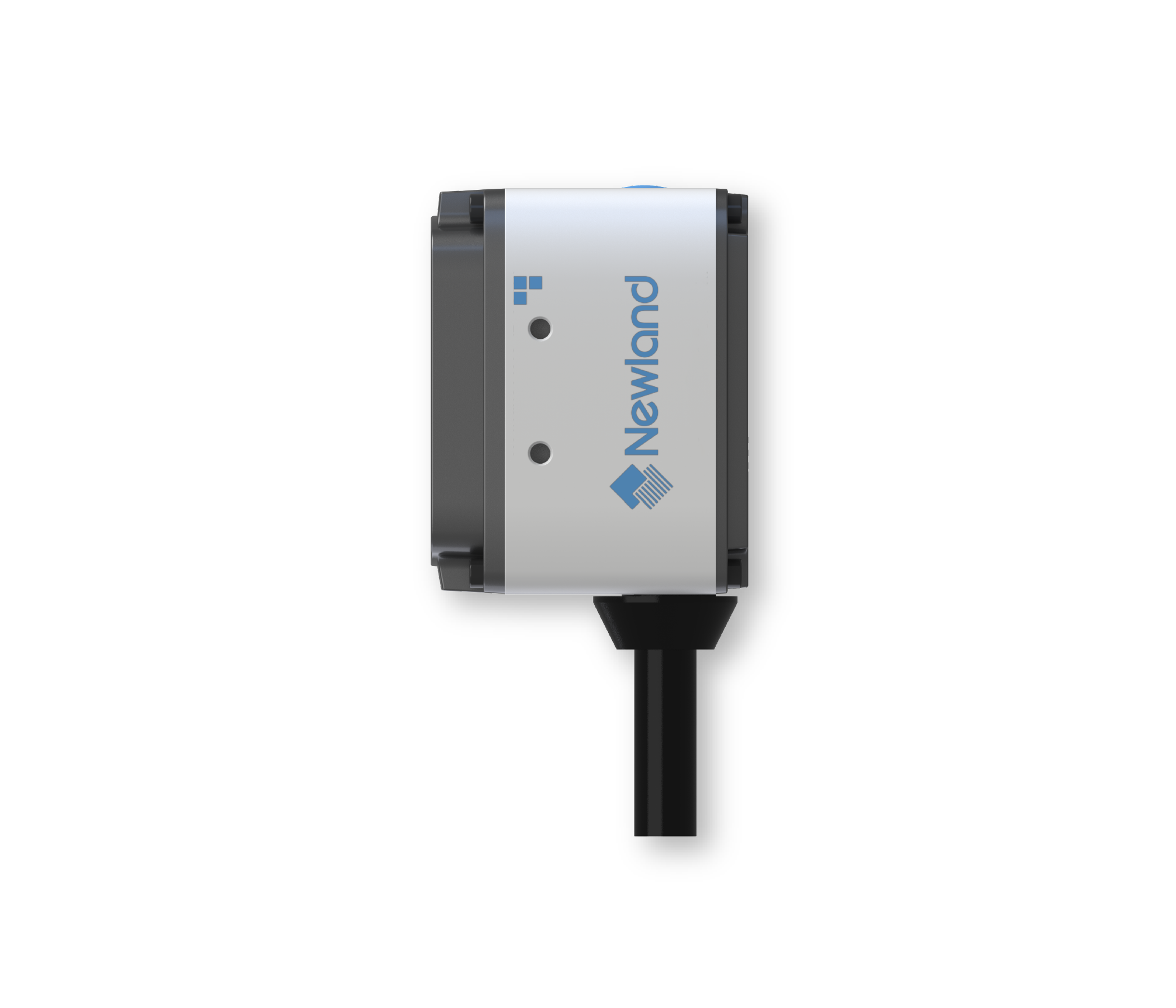

FM Fixed Mount Series

The Newland FM Fixed Mount Series is an industrial stationary barcode scanner family designed for automated integration into kiosks, conveyor systems, access control gates, and production machinery. Available in compact and IP-sealed industrial housings with wide-angle CMOS optics and fast motion tolerance, these stationary imagers read 1D and 2D barcodes automatically from printed paper or mobile phone screens. Business applications include self-service ticketing kiosks, automated production line tracking, automated packaging inspection, smart locker retrieval, and transit turnstiles. The FM Series enables hands-free automated scanning, increases processing velocity, and ensures reliable unattended barcode capture in industrial machinery.

  • Description
Description

Description



Specification Parameter

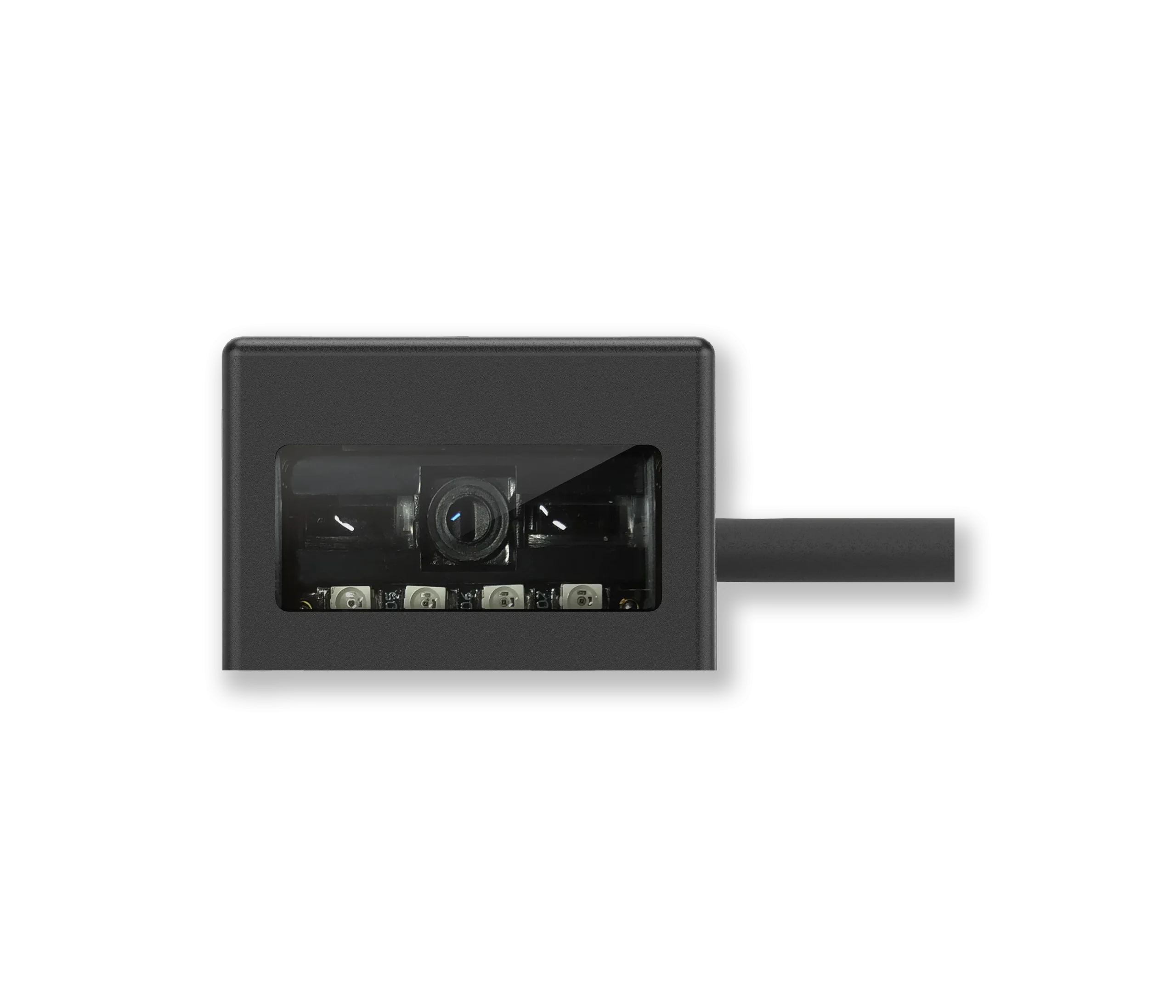

FM100-M

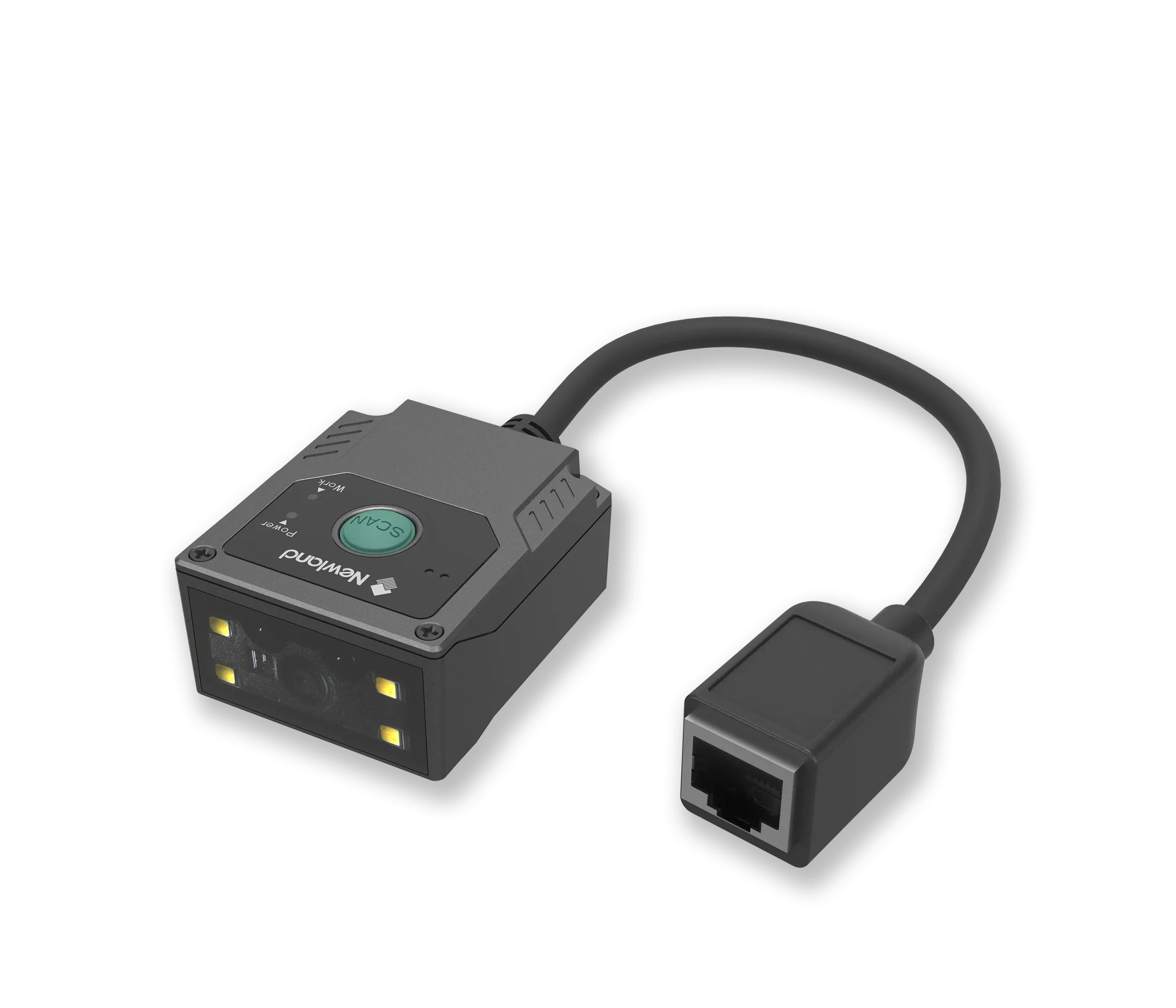

FM430

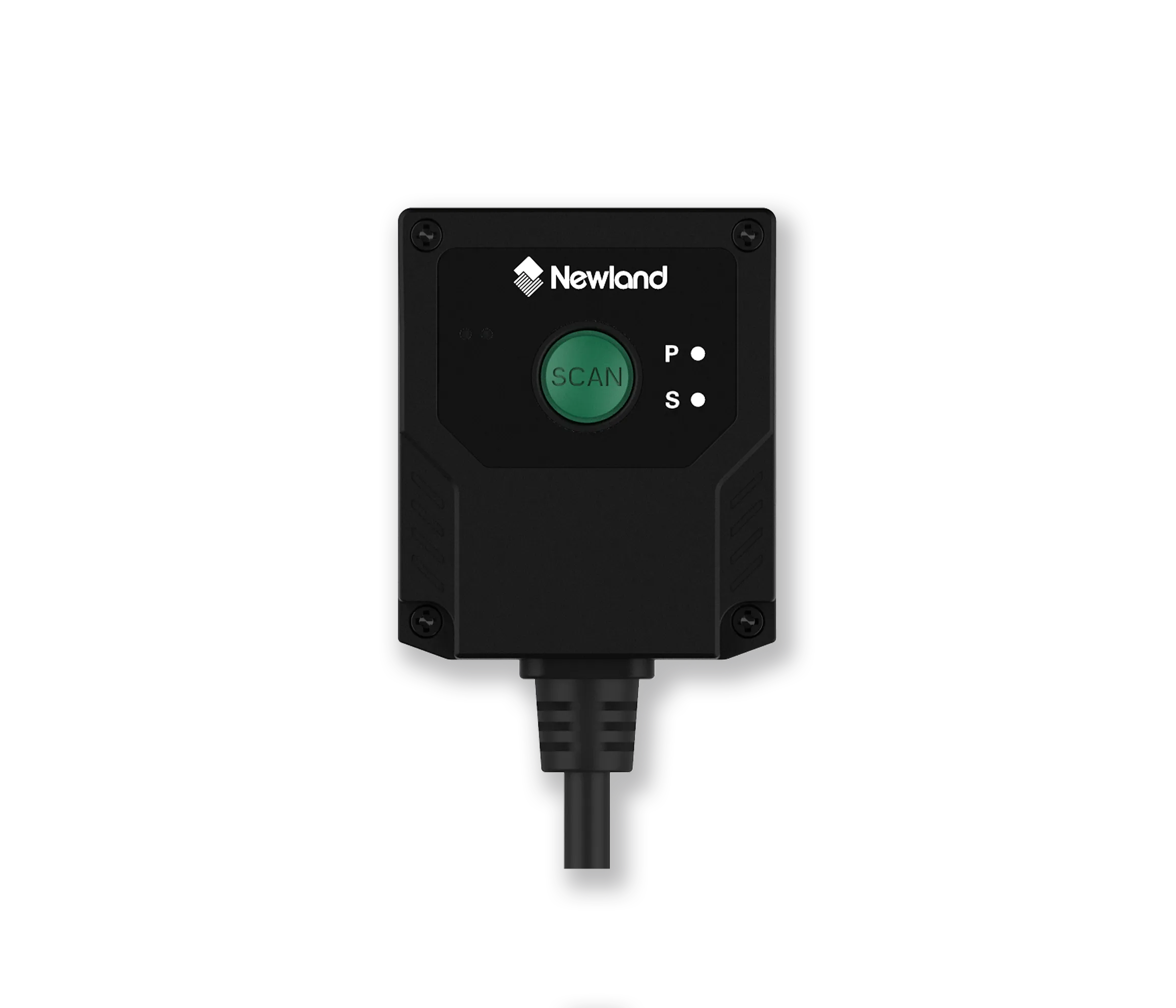

FM431

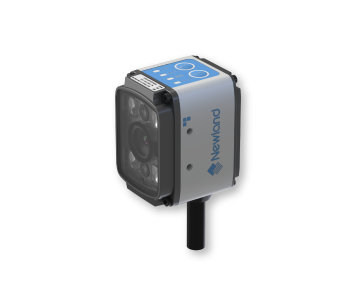

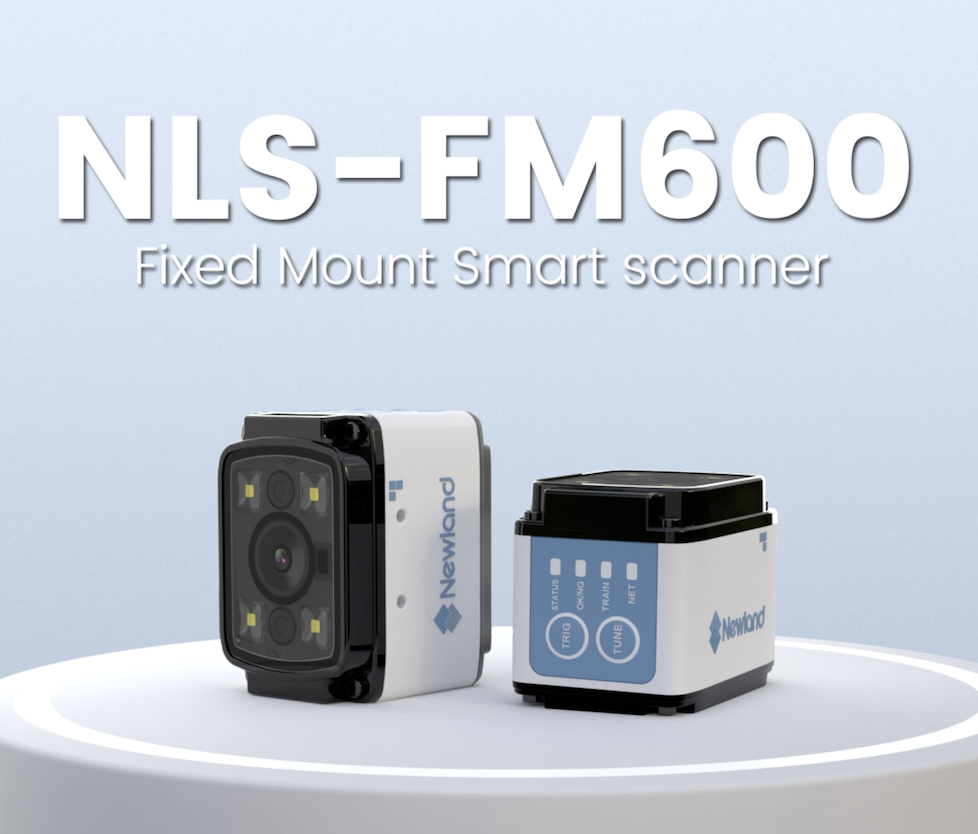

FM600

FM3280

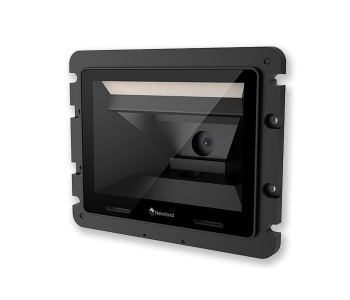

FM60

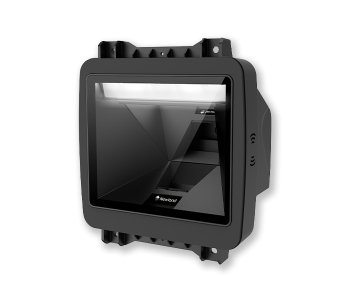

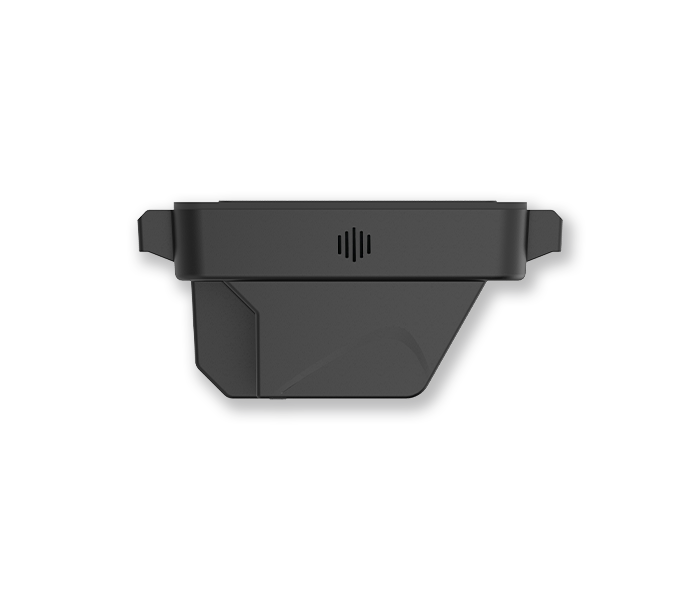

FM80

Product BrandNewland
CategoryScanners
Series NameFM Fixed Mount Series
Image Sensor2500 Linear Imager1280 × 800 CMOS 1920 × 1200 CMOS1280 × 1088 CMOS1280 × 800 CMOS1280 × 1088 CMOS
IlluminationAmbient LightWhite LED3000K White LED4× White LEDs3000K White LED5000K White LEDRed LED (610–620nm)
AimingRed LEDLaser / Green LED 2× Green LEDs—
Symbologies1D Only1D, 2D1D, 2D, Postal, OCR1D, 2D, Postal, OCR, Digimarc
Resolution≥5 mil≥3 mil≥4 mil (1D)≥3 mil (1D)
Interface SupportRS-232, USB 1.1RS-232, USBEthernet, RS-232, USBRS-232, USB, RS-485RS-232, USB
Operating Voltage5 VDC5 VDC ±5%24 VDC ±10%5–24 VDC ±5%5–12 VDC ±5%5 VDC ±5%
Operating Temperature-5°C to 45°C-20°C to 60°C-10°C to 45°C-20°C to 50°C-20°C to 55°C
Sealing Rating—IP54IP65IP67IP52
