Home Newland Scanners NVH Industrial DPM Series

NVH Industrial DPM Series

The Newland NVH Series is a specialized industrial 2D barcode scanner family designed specifically for reading Direct Part Marks (DPM) on metal, plastic, and reflective industrial surfaces. Equipped with multi-angle configurable illumination (direct red/blue and diffuse white lighting) and advanced optical filters, it effortlessly decodes laser-etched, dot-peen, and chemical-etched Data Matrix codes. The rugged casing features high drop resistance and IP64 industrial sealing. Key applications include automotive parts manufacturing, aerospace component tracking, medical device serialization, electronics PCB assembly, and heavy machinery fabrication. The NVH Series provides high DPM reading accuracy, eliminates manual code deciphering delays, and supports strict manufacturing traceability compliance.

  • Description
Description

Description



Specification Parameter

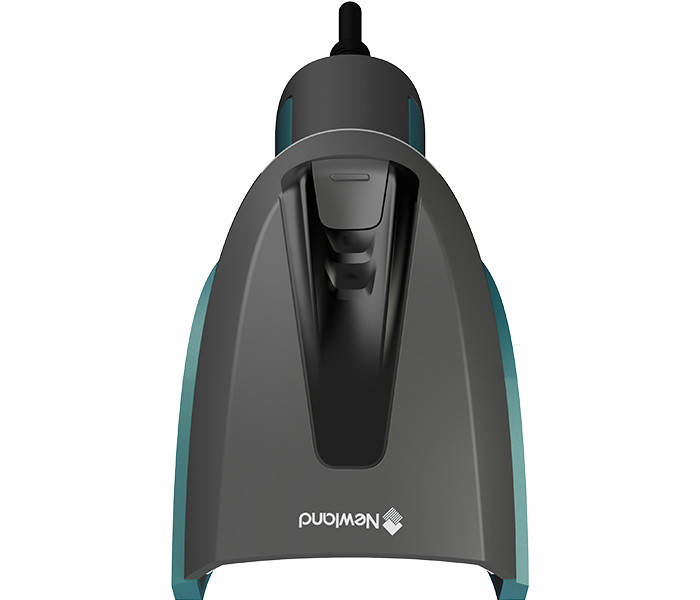

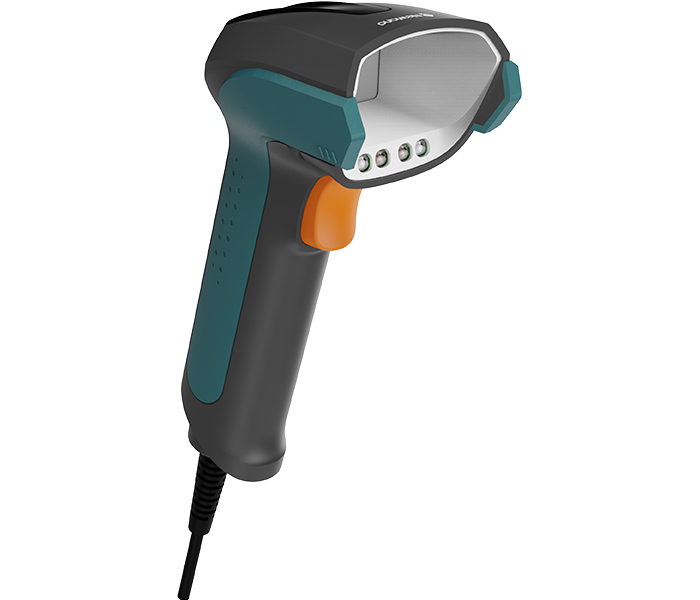

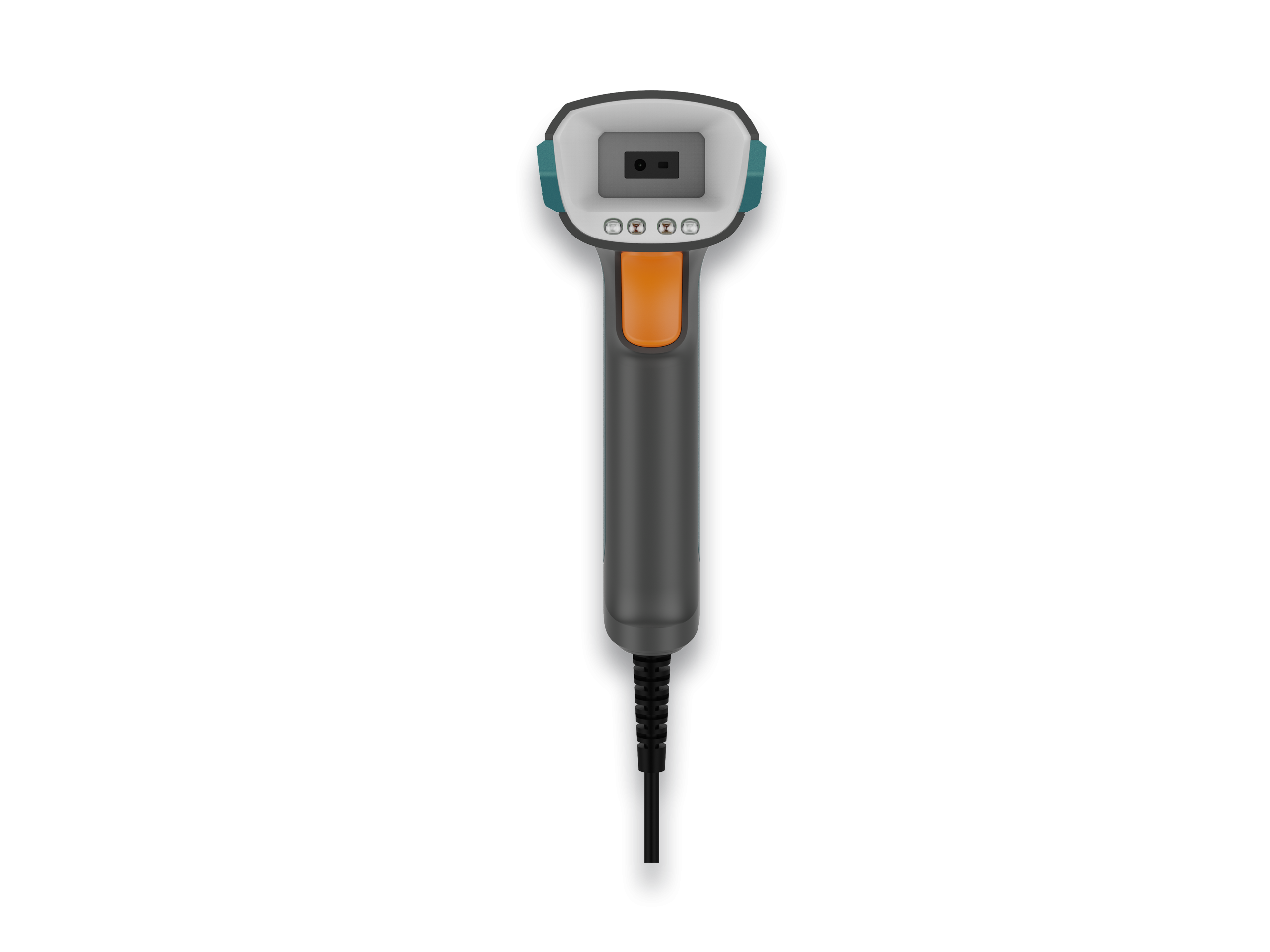

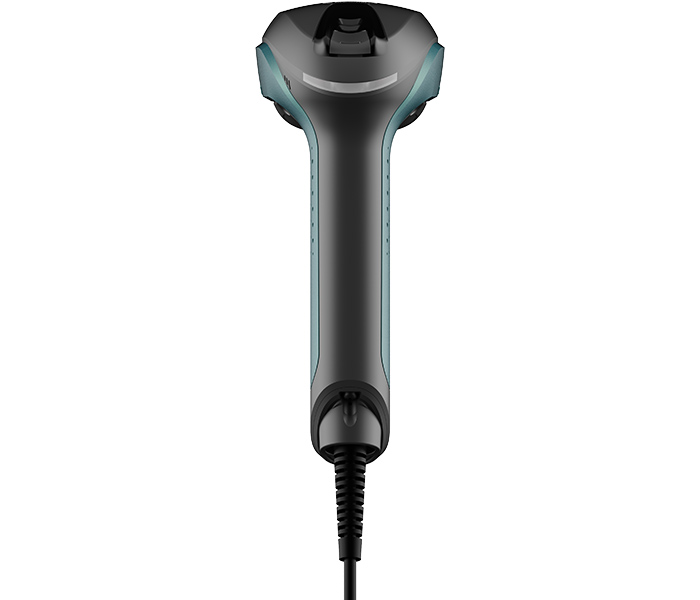

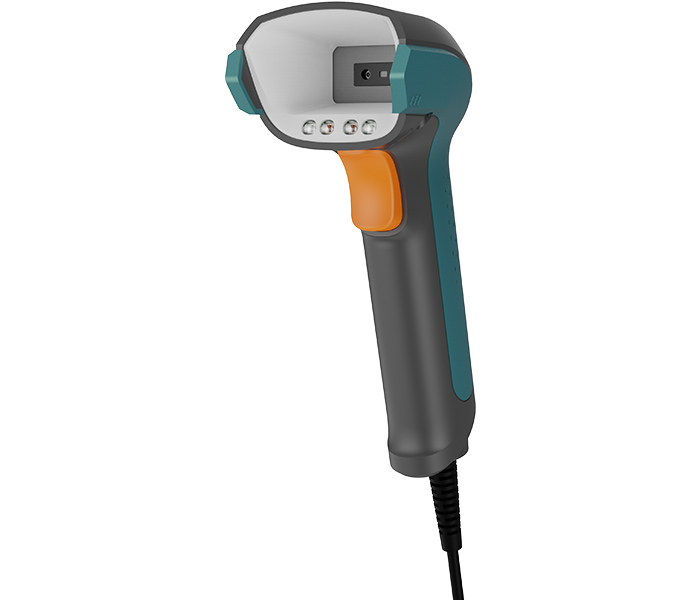

Newland NVH220

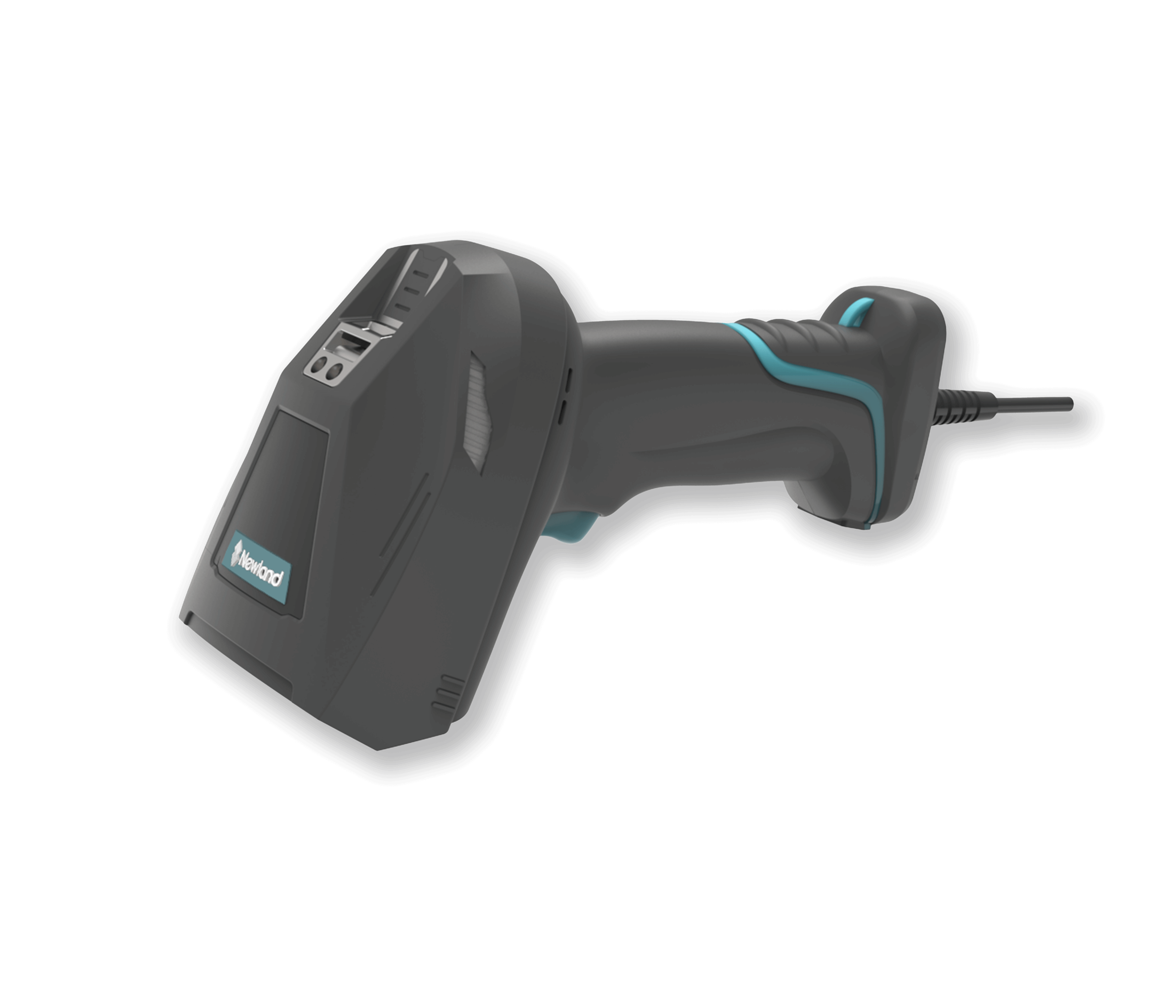

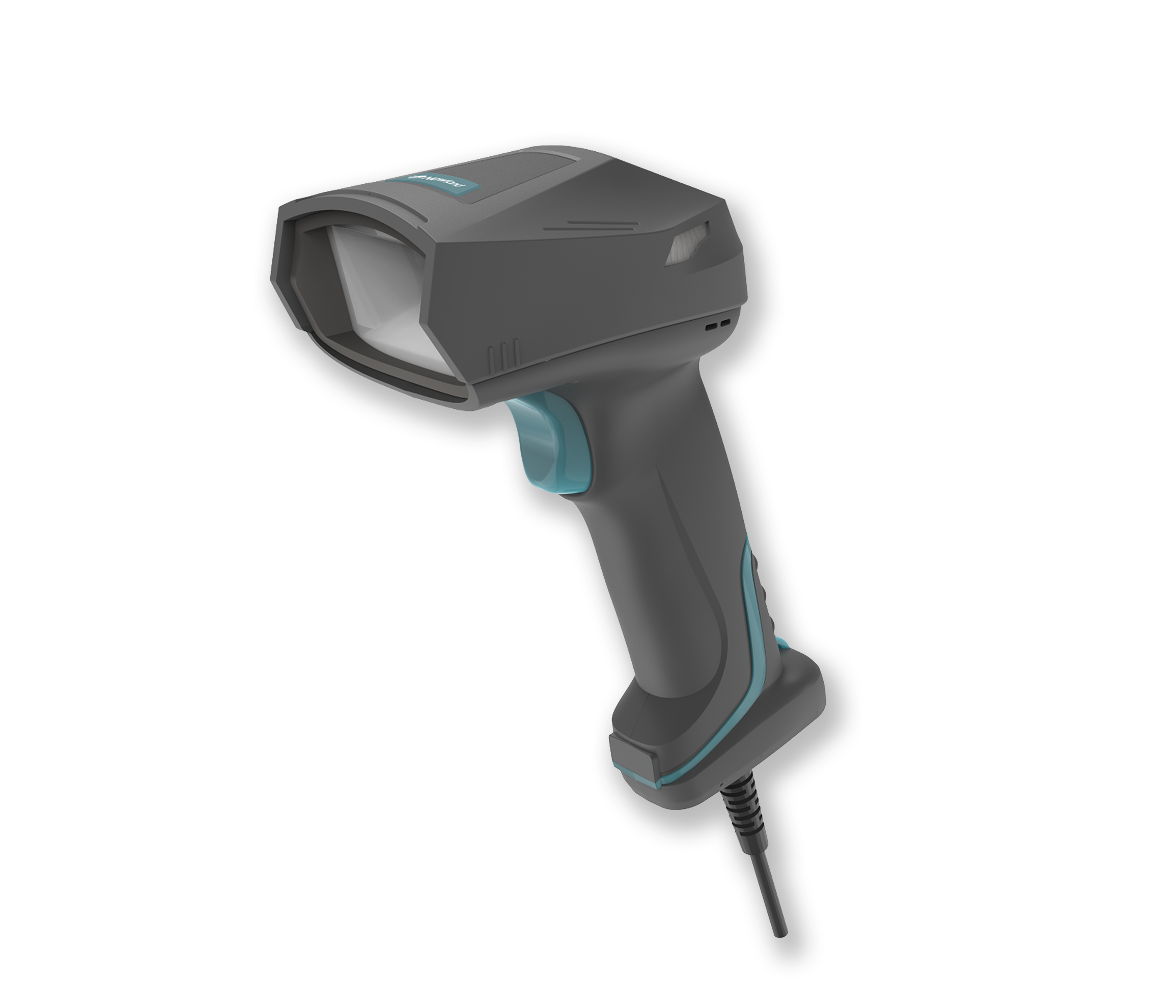

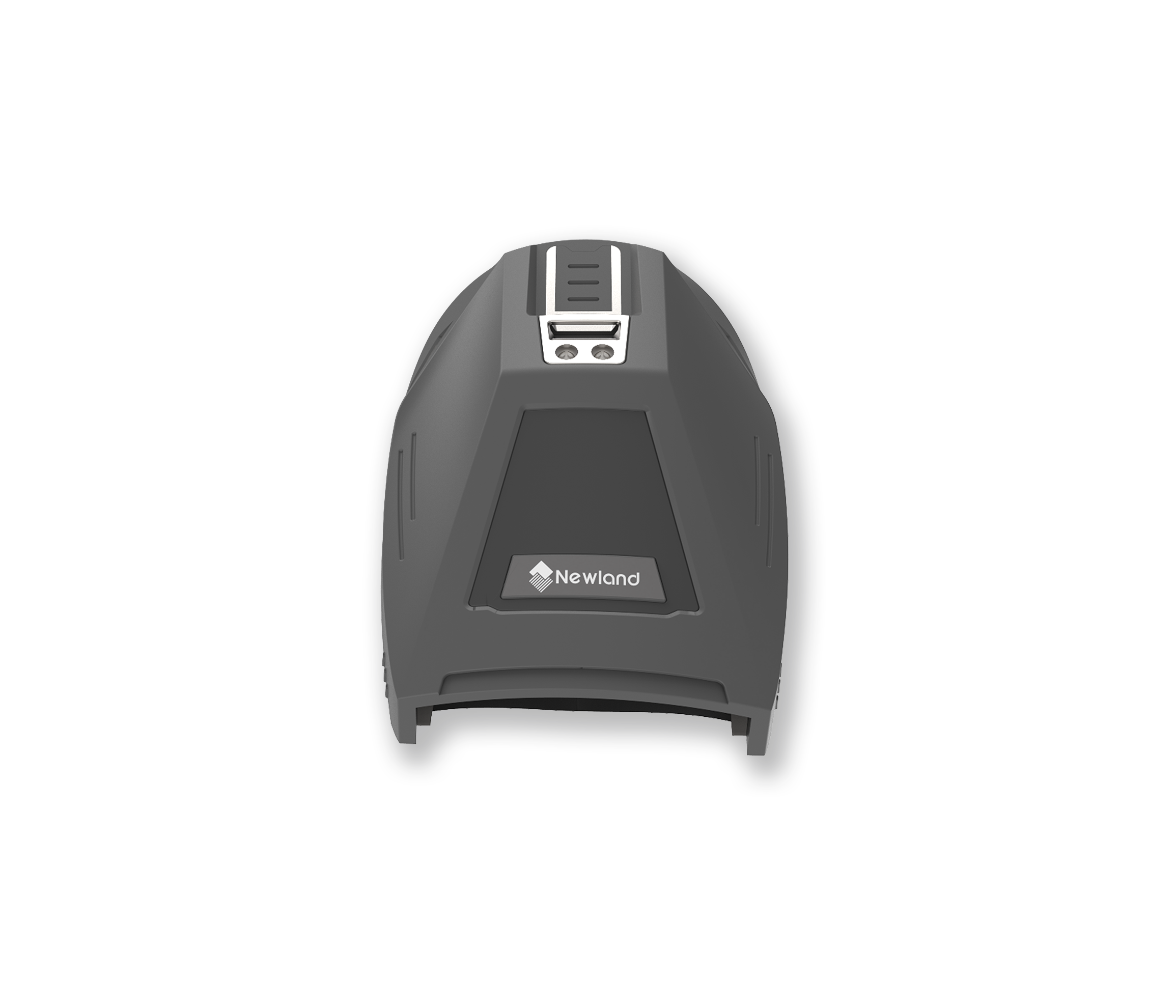

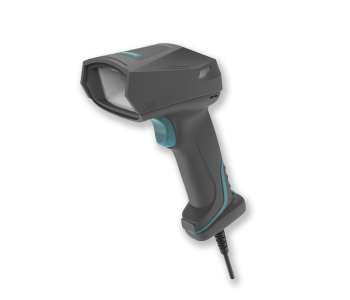

Newland NVH300

Product BrandNewland
CategoryScanners
Series NameNVH Industrial DPM Series
Image Sensor1280 × 800 CMOS1280 × 960 CMOS
Illumination & AimingDirect: Red & Blue LEDs; Diffuse: White LEDDirect: White; Diffuse: Red/Blue LEDs + 650nm Laser Diode
Optical Resolution≥1.85 mil (1D), ≥3 mil (2D)≥3 mil DPM
DPM / Direct Part Mark SupportYes (Laser Engraved, Dot Peen & Low-Contrast DPM)
Interface SupportUSB, RS-232, EthernetRS-232, USB
Operating Voltage5 VDC ±5%
Dimensions68 × 86 × 180 mm76 × 107 × 185 mm
Operating Temperature-20°C to 50°C (-4°F to 122°F)
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Sealing RatingIP64 Industrial Sealing

Related products

Read more

MT93 Series

Read more

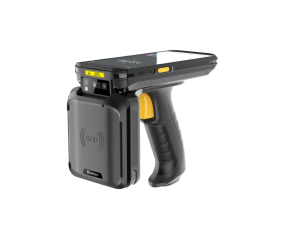

MT93-U Series

Read more

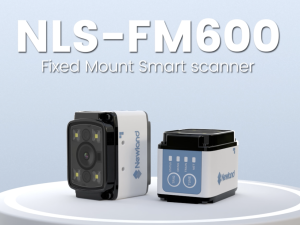

FM Fixed Mount Series

Read more

N7 Keypad Series

Read more

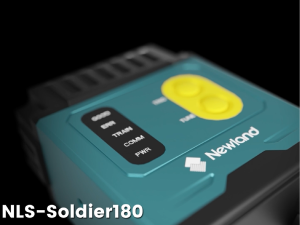

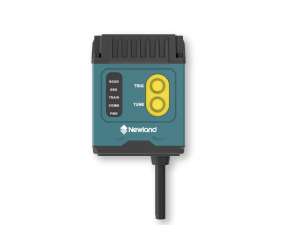

Soldier Industrial Series

Read more

WD1 Wearable Series

Read more

FR Presentation Series

Read more

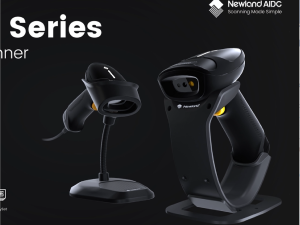

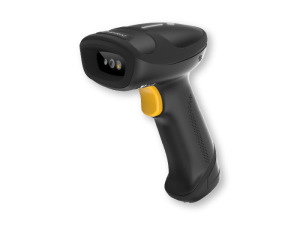

HR-BT Cordless Series
