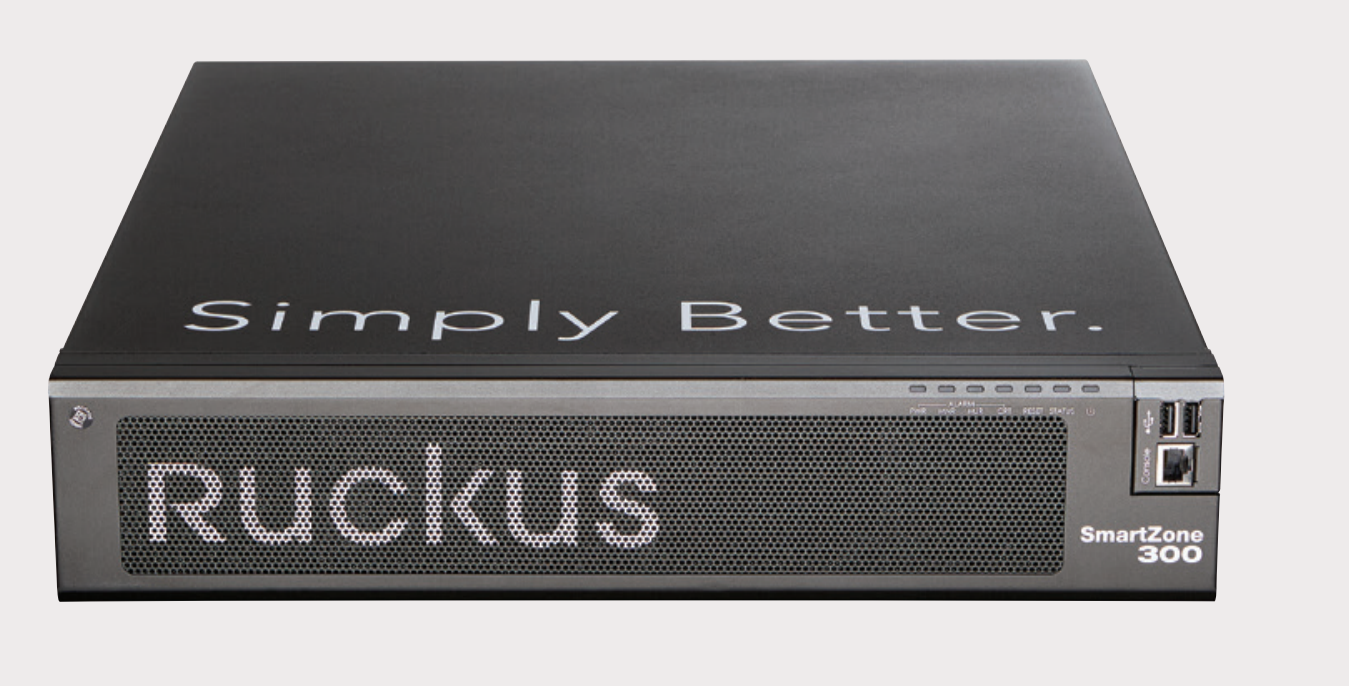

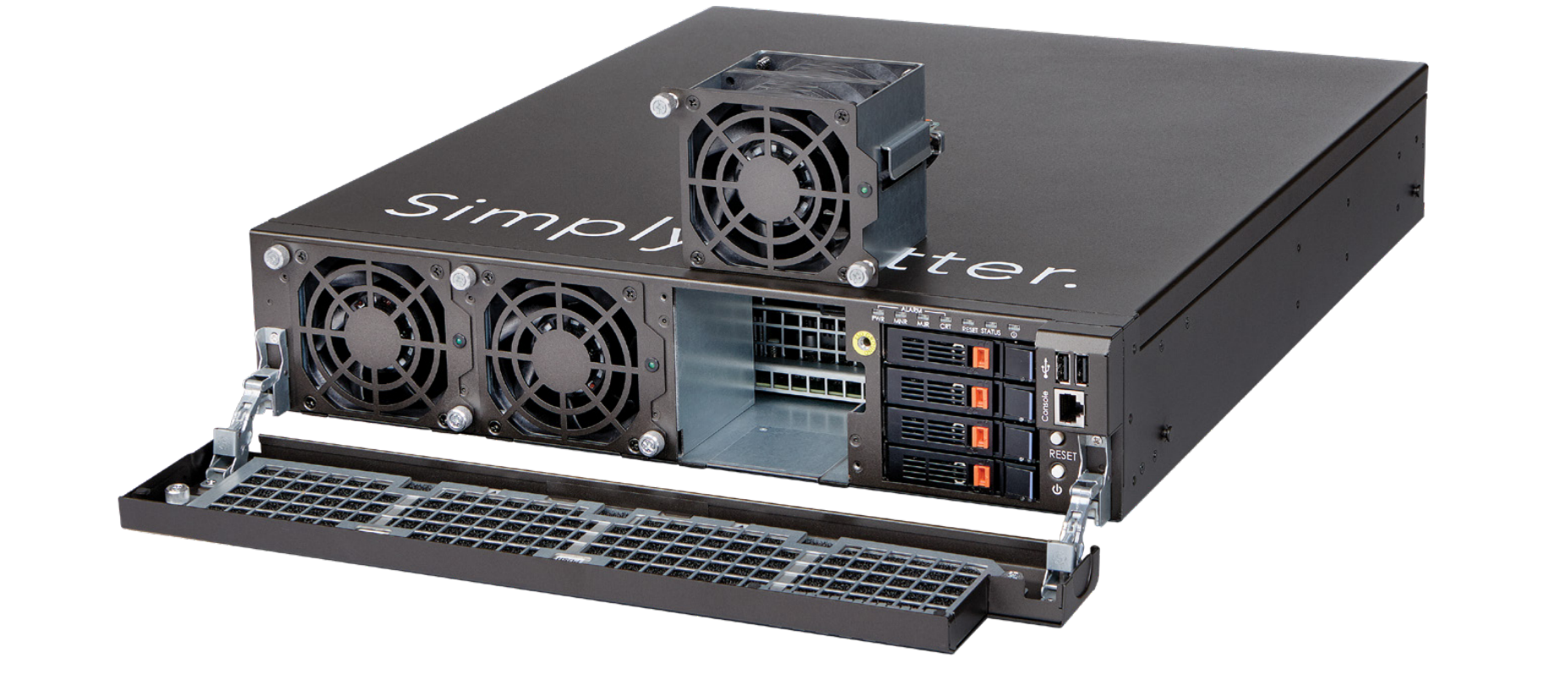

Specification Parameter | SmartZone 300 (SZ300) | Virtual SmartZone – High Scale (vSZ-H) |
| Product Brand | RUCKUS® (CommScope) |
| Category | Edge System |
| Series Name | SmartZone Carrier & Service Provider Series |
| Form Factor / Deployment Type | Physical 2RU Rack Appliance | Virtual Appliance (VMware, KVM, AWS, Azure, GCE) |
| Target Audience | Operators, Service Providers & NaaS Providers |
| Managed AP Capacity (Controller / Cluster) | Up to 10,000 per Controller / 30,000 per Cluster |
| Managed Switch Capacity (Controller / Cluster) | Up to 2,000 per Controller / 6,000 per Cluster |
| Concurrent Client Devices (Controller / Cluster) | Up to 150,000 / 450,000 per Cluster | Up to 100,000 / 300,000 per Cluster |
| Max WLANs Supported | Up to 2,048 per Zone / 65,534 per Cluster |
| Max VLANs Supported | Up to 4,094 VLANs |
| Network Interfaces / Connections | 6× 1GbE RJ45 + 4× 10GbE SFP+ Data + 2× RJ45 Console | Virtual NICs (Hypervisor Dependent) |
| Power Supply & Consumption | Dual Redundant AC (1500W) or DC (-36 to -72VDC) Hot-Swap | Cloud / Server Dependent |
| Physical Dimensions / Weight | 2RU: 430 × 518 × 88.6 mm (24.3 kg / 53.6 lbs) | Virtual Software Appliance |
| High Availability Architecture | Active / Active Cluster Redundancy (N+1 Mode), Intra & Inter-Cluster Geo-Failover |
| Control & Data Plane Architecture | Separated Control and Data Plane (SSH / GRE Tunneling with Local Breakout option) |
| Multi-Tenancy & Partner Domain | Yes (Multi-Tier Multi-Tenancy, Partner Domain Isolation & Custom Branding) |
| Dynamic Pre-Shared Key (DPSK) | Up to 50,000 System DPSKs / 25,000 per Zone / 500 Group DPSKs |
| Advanced Security & Management | WIDS/WIPS Rogue AP Detection, mDNS/Bonjour Fencing, Hotspot 2.0 / Passpoint, RESTful APIs |
